Hydra-MT-PRO-062 T3-T6 - Sn62Pb36Ag2 leaded high activity water-soluble eutectic solder paste 2% Silver (REM1)
High-activity water-soluble, for leaded MT soldering
-
Class
WS/REM1
J-STD-005C
-
Stencil
~ 12 hours
at 30-70% R/H @20-25ºC
-
Tack
28-34
Tack force g/cm
-
Print
200-275
Viscosity in Malcom mPA/s x10³ 10RPM @25ºC
-
Dispense
90-130
Viscosity in Malcom mPA/s x10³ 10RPM @25ºC
STIRRI®
SKU:SP-YMH-020-062-3
In stock
Hydra-Mt-PRO-062 Sn62Pb36Ag2 - medium activity REM1 water-soluble leaded solder paste for OEM manufacturers requiring instant no-fail wetting action and soldering assurance with easy cleaning, minimum residue, low maintenance cost and regulatory burden.
World's first Water-Soluble (WS) solder paste with QC-Aid™ optical tracer glowing in UV enabling for optional instant visual contamination inspection without complex equipment environment or excessive training, Hydra's residue glows in UV/blacklight immediately exposing applicable areas and any remaining contamination after cleaning process. Essential for quality driven organizations. UV light is for optional cleaning QC certification only - not required for operating the paste.
Consider HydraCoat™ Conformal Nano-Coating for instant environmental electronics protection - dries in less than 8 seconds HydraCoat self-cures in 24 hours or in 10 minutes under 50ºC
Available also without QC-Aid optical UV-tracer
OEM Specifications:
45H - QC-Aid™ (UV-traceable)
44H - No QC-Aid™ (UV-untraceable)
Suitability
Suitability
Solder Paste Viscosity
Solder Paste Viscosity
Values in Malcom @ 10 RPM/25ºC x10³ mPa/s
Printing: 200-275
Dispensing: 90-130
Stencil Life
Stencil Life
Printer Operation
Printer Operation
Print Speed: 25-100 mm/sec
Squeegee Pressure: 70-250g/cm of blade
Under Stencil Wipe: Once every 10-25 prints, or as necessary
Some adjustments may be necessary depending on process requirements
Stencil Cleaning
Stencil Cleaning
No-clean solder paste that can be left on the board for many SMT assemblies. For applications requiring cleaning, the paste can be cleaned using commercial residue removers.
Automated cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA), co-solvents and/or ultrasonic scrubbers, vapor degreaser.
Do you make this paste untraceable - without QCA?
Do you make this paste untraceable - without QCA?
UV light is for optional for QC certification only - not required for operating the paste.
However, this material is also available untraceable - without QC-Aid™, meaning no specific optical UV-tracer has been deployed. Contact us for the MPN (Manufacturing Part Number) without UV-tracer.
Storage and Handling
Storage and Handling

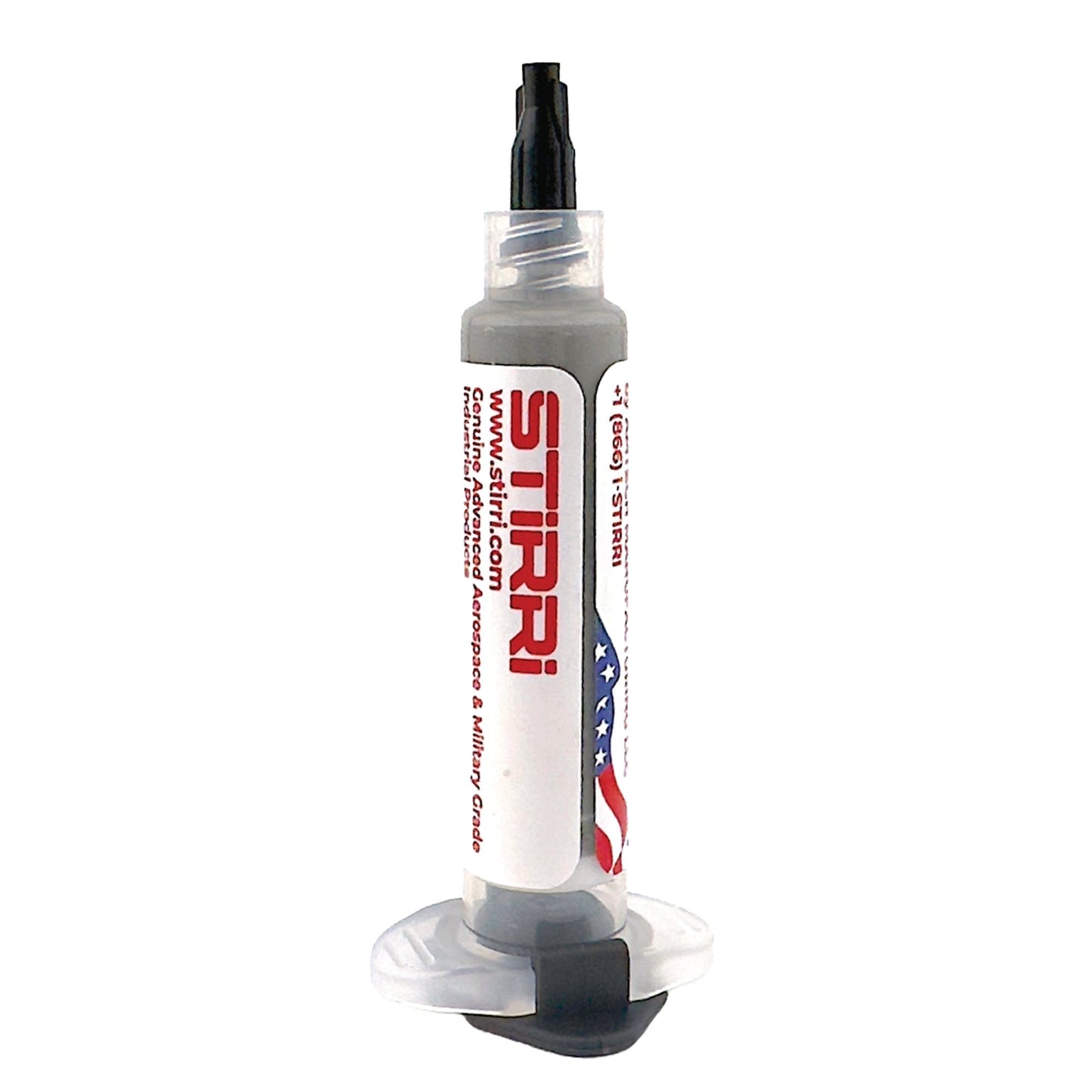

To obtain the maximum shelf life STIRRI Soldering Paste & Liquid Solder™ should be stored in a refrigerator between 3-8°C (37-46°F). Unopened solder paste stored at room temperature, 25°C (77°F). Syringes and cartridges should be stored in the refrigerator vertically, dispensing tip pointing down.
Allow 4-8 hours for solder paste to reach optimal operating temperature of 20-25°C (68-77°F). To avoid condensation inside solder paste - keep solder paste container sealed while warming the solder paste to operating temperature, otherwise moisture may end up inside the container and contaminate solder paste!
NEVER FREEZE SOLDER PASTE!
Safety Notice
Safety Notice
This product is designed for professional consumers. Information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having technical skill, at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process. Manufacturer or distributors will assume no liability for results obtained or damages incurred through the application of the data presented - try on a small non-critical surface first!
