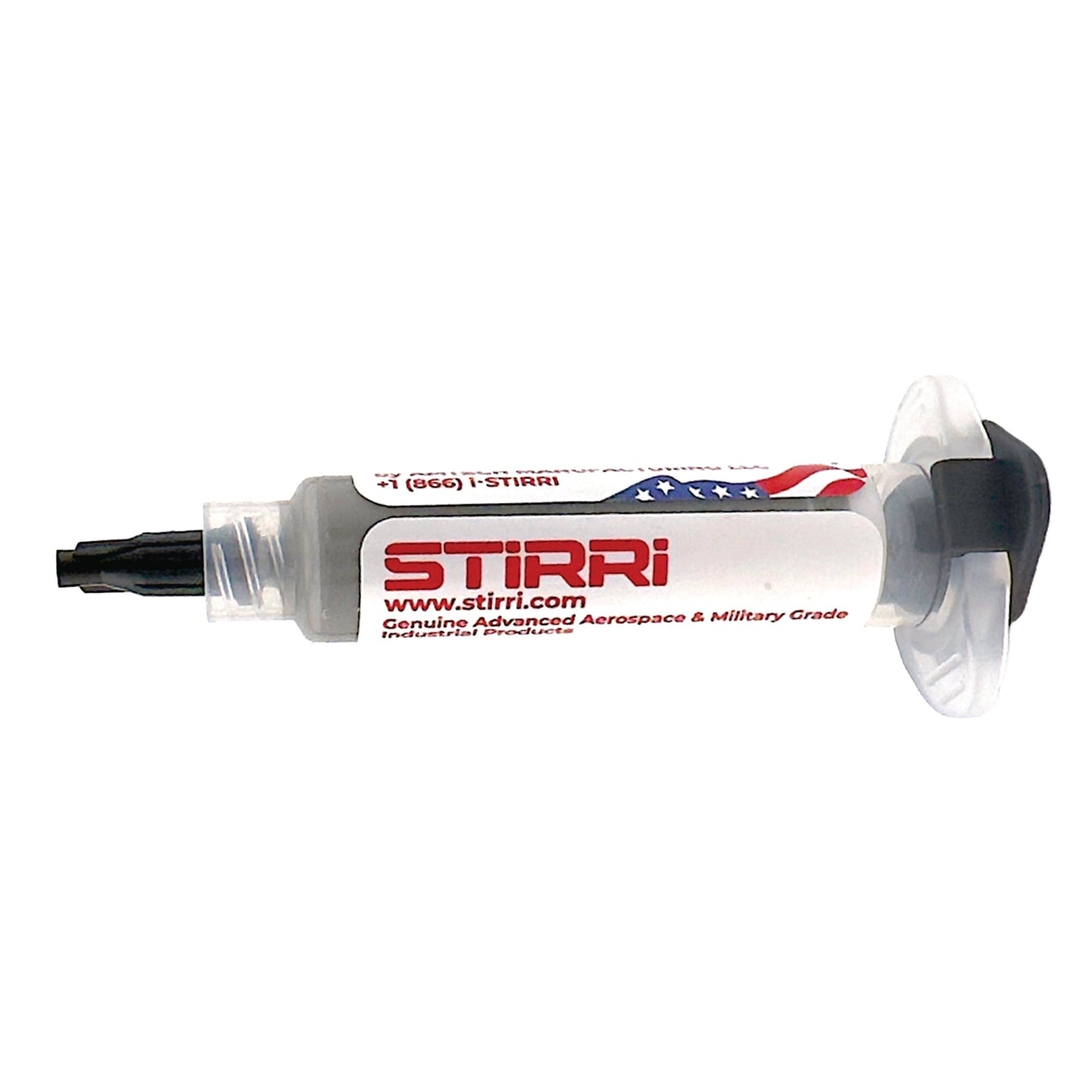

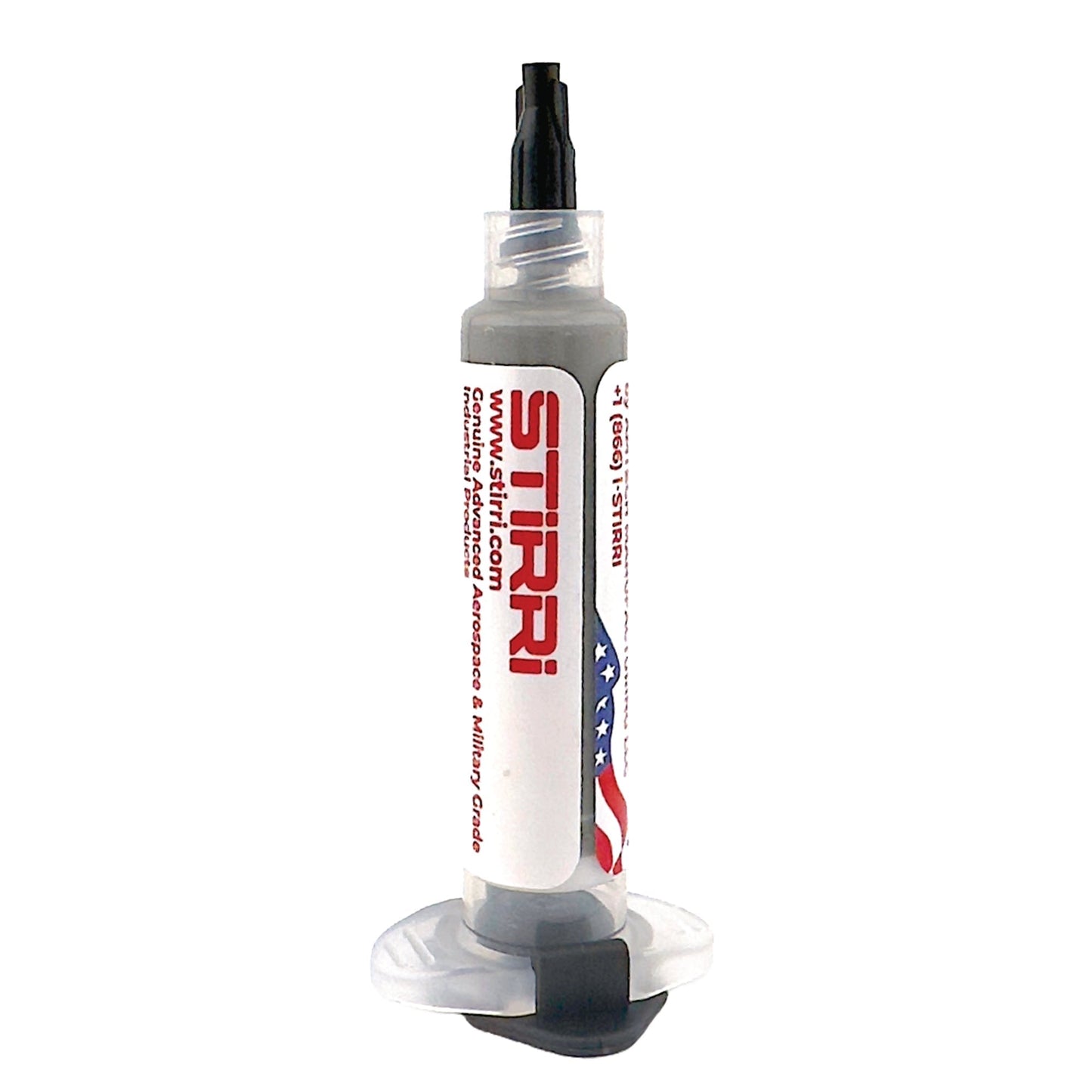

RMA-HT-010 T3 - Sn10Pb88Ag2 high-temp no-clean rosin mildly activated solder paste 2% silver (ROL0)
Prolonged high-temperature reflow profiles. Semiconductors. Hot Air rework.
-
Class
NC/ROL0
J-STD-005C
-
Stencil
~ 12 hours
at 30-70% R/H @20-25ºC
-
Tack
44-48
Tack force g/cm
-
Print
210-300
Viscosity in Malcom mPA/s x10³ 10RPM @25ºC
-
Dispense
100-140
Viscosity in Malcom mPA/s x10³ 10RPM @25ºC
STIRRI®
SKU:SP-SRH-020-010-3
In stock
RMA-HT-010 is a rosin mildly activated high-temperature solder paste made using Sn10Pb88Ag2 alloy melting at 290ºC.
Formulated with mild activity rosin and increased solids content, this paste withstands reflow at 350ºC for 5 minutes or longer - suitable for semiconductors attachment and multi-step PCB assembly.
HT series increase speed and productivity for Hot Air rework under 380-480ºC with its specific fire-retardant properties HT flux maintains efficiency and clarity for extended period of time requiring minimum top-ups!
Suitability
Suitability
Solder Paste Viscosity
Solder Paste Viscosity
Values in Malcom @ 10 RPM/25ºC x10³ mPa/s
Printing: 210-300
Dispensing: 100-140
Stencil Life
Stencil Life
Printer Operation
Printer Operation
Print Speed: 25-100 mm/sec
Squeegee Pressure: 70-250g/cm of blade
Under Stencil Wipe: Once every 10-25 prints, or as necessary
Some adjustments may be necessary depending on process requirements
Stencil Cleaning
Stencil Cleaning
No-clean solder paste that can be left on the board for many SMT assemblies. For applications requiring cleaning, the paste can be cleaned using commercial residue removers.
Automated cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA), co-solvents and/or ultrasonic scrubbers, vapor degreaser.
Do you make this paste untraceable - without QCA?
Do you make this paste untraceable - without QCA?
UV light is for optional for QC certification only - not required for operating the paste.
However, this material is also available untraceable - without QC-Aid™, meaning no specific optical UV-tracer has been deployed. Contact us for the MPN (Manufacturing Part Number) without UV-tracer.
Storage and Handling
Storage and Handling
To obtain the maximum shelf life STIRRI Soldering Paste & Liquid Solder™ should be stored in a refrigerator between 3-8°C (37-46°F). Unopened solder paste stored at room temperature, 25°C (77°F). Syringes and cartridges should be stored in the refrigerator vertically, dispensing tip pointing down.
Allow 4-8 hours for solder paste to reach optimal operating temperature of 20-25°C (68-77°F). To avoid condensation inside solder paste - keep solder paste container sealed while warming the solder paste to operating temperature, otherwise moisture may end up inside the container and contaminate solder paste!
NEVER FREEZE SOLDER PASTE!
Safety Notice
Safety Notice
This product is designed for professional consumers. Information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having technical skill, at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process. Manufacturer or distributors will assume no liability for results obtained or damages incurred through the application of the data presented - try on a small non-critical surface first!
