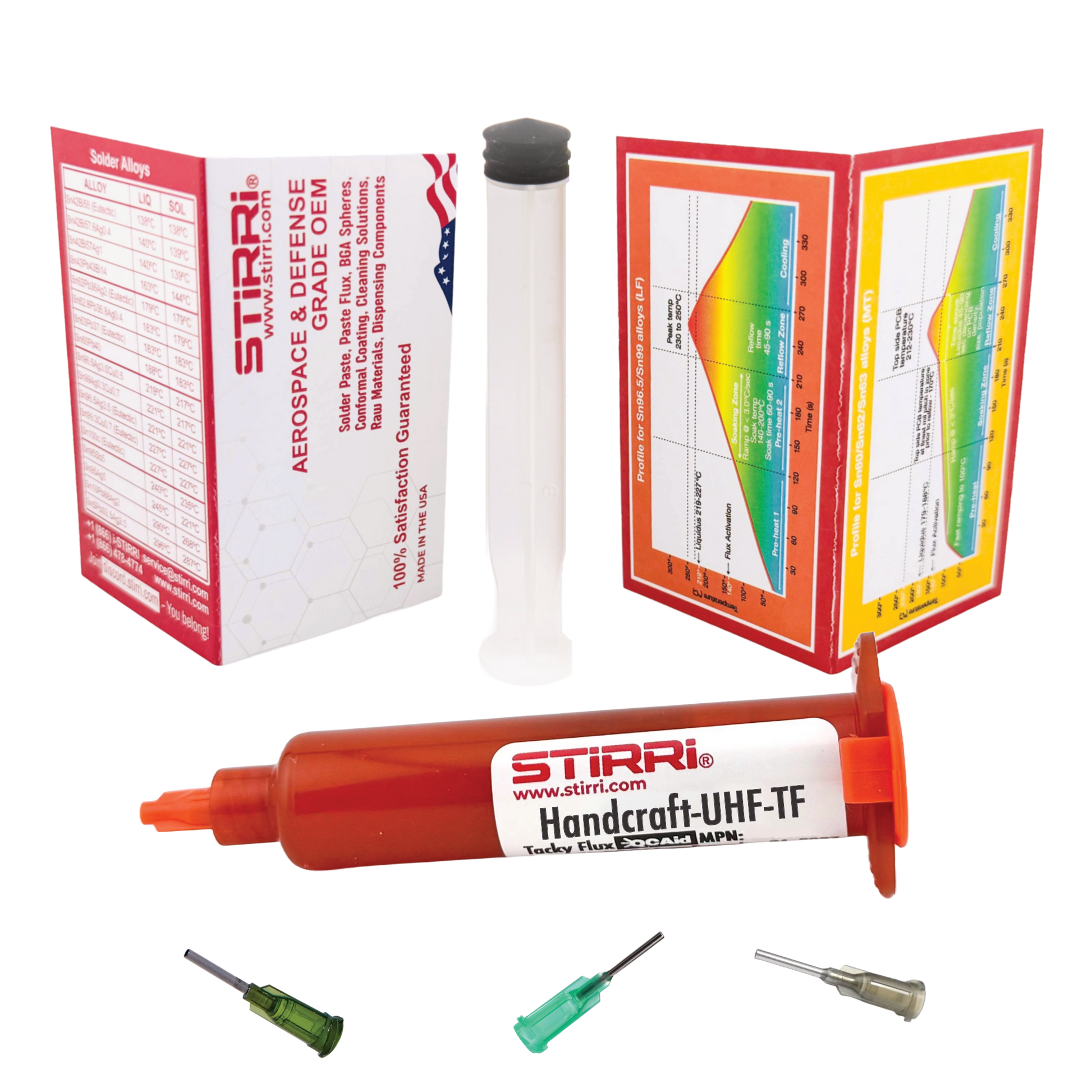

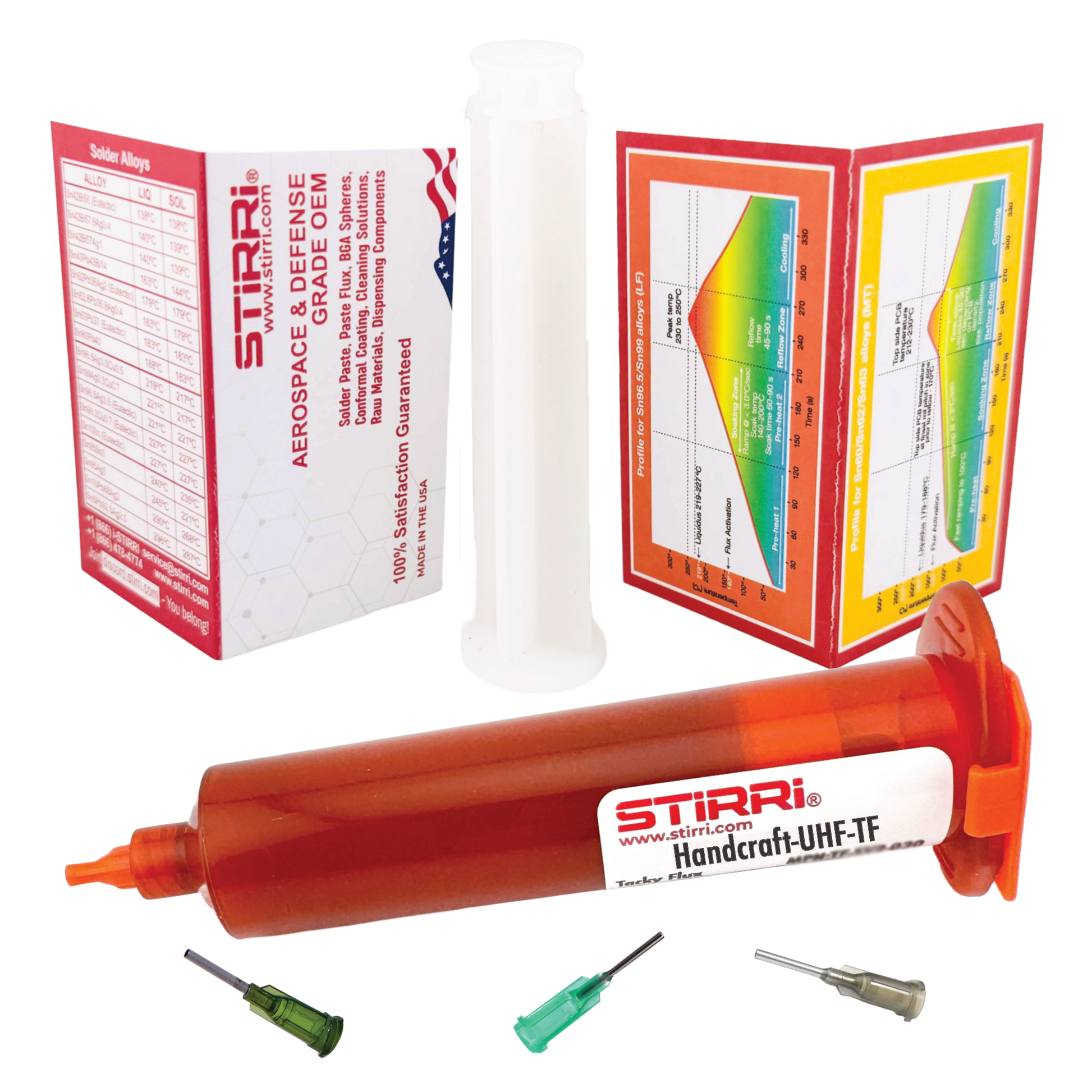

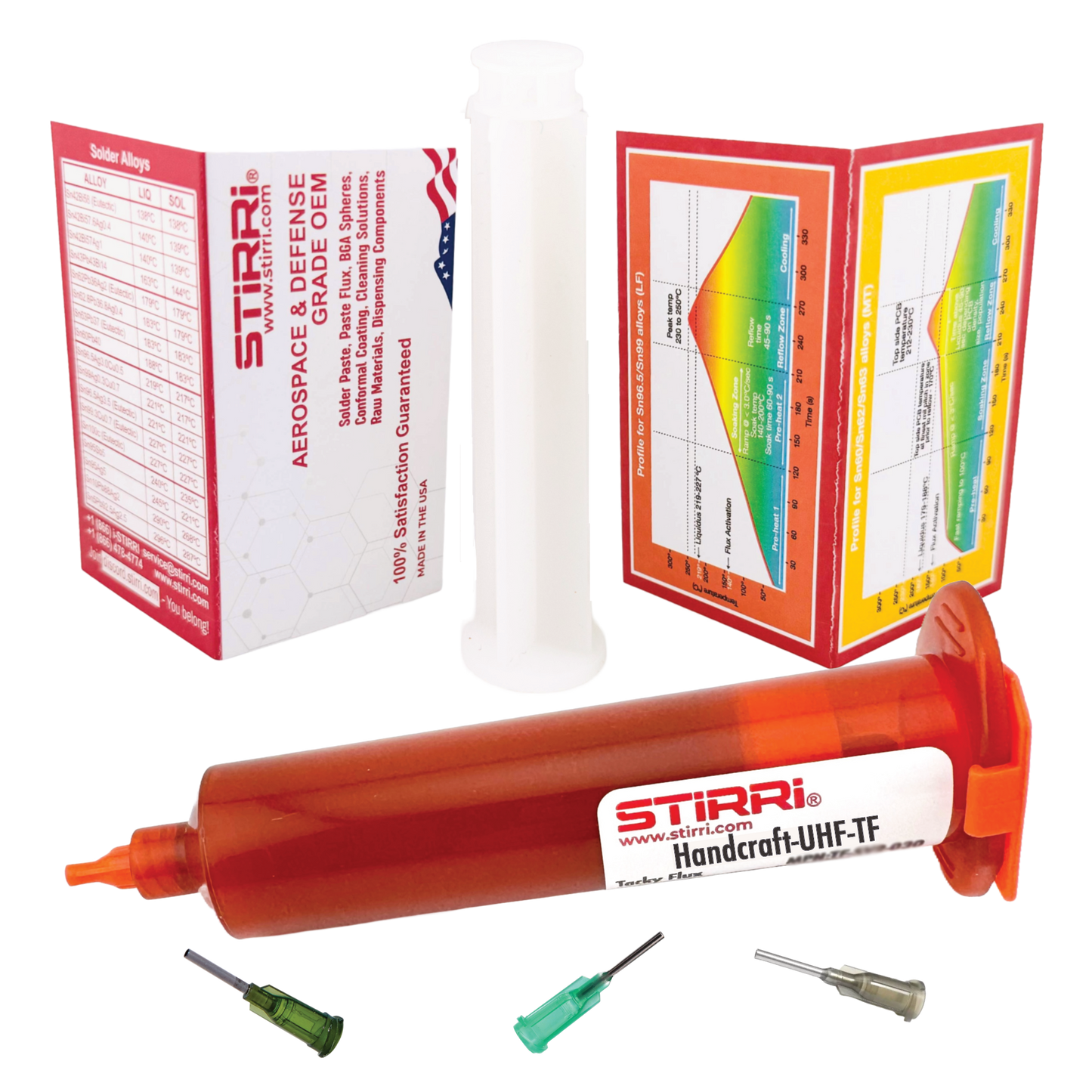

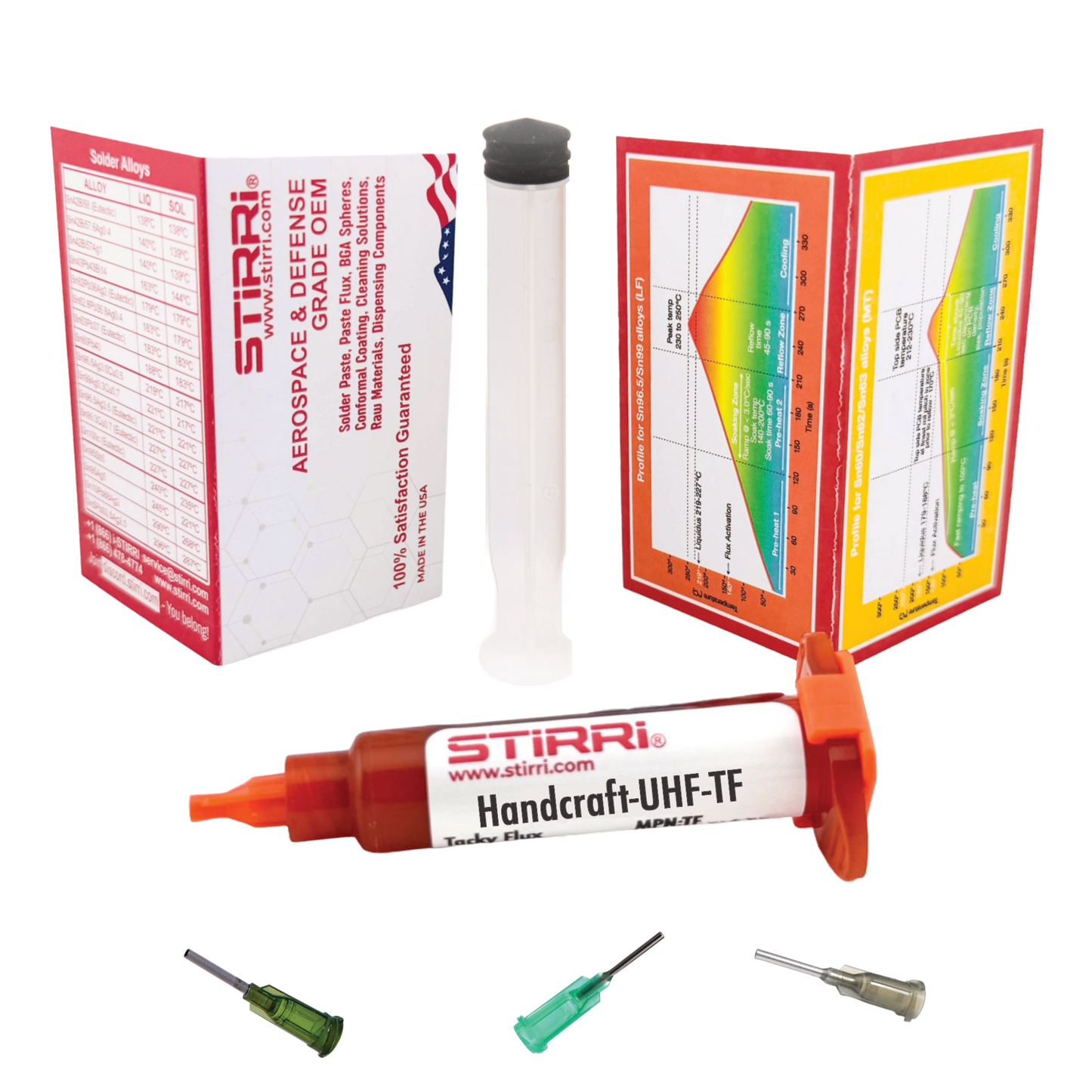

Handcraft-UHF-TF universal no-clean halogen-free soldering tacky paste flux (ROL0)
Universal ultra-low voiding halogen-free mid-temp Handcraft & SMD assembly
STIRRI®
SKU:TF-HHF-005-K
Auf Lager
Handcraft-UHF-TF™ is a universal no-clean halogen-free soldering tacky paste flux
Clear flux body and clear residue make it fantastic choice for hand-soldering
Contains QC-Aid™ optical tracer for instant visual contamination inspection. QC-Aid - Everyone can QC™
Wide application range
Top-tier aerospace & defense grade material can be safely used for hand-soldering electronics, automotive repairs, IC-chip replacement, BGA-reballing, gaming console repair, applications requiring halogen-free no-clean clear residue with incredibly low voiding.
Performance
Full body of enriched pine crystal rosins creating a transparent coating layer over the soldering area effectively blocking oxygen from the solder joints and thus allowing metals to bond - guaranteed!
Traits:
- Slightly yellow fully transparent rosin-rich flux body with clear non-corrosive residue. A truly no-clean flux - halogen-free, doesn't short components! REACH-compliant. Can be left on PCB or easily removed by hot air or basic solvents like Isopropanol.
- Used in MT solder paste and hand-soldering electronics/automotive repairs. Smooth dispensing and flow, excellent ability to hold components in place. Easy flowing under IC chips. Universal for leaded and lead-free alloys.
- Viscosity – 30-50 Pa/s (Malcom @ 10 RPM/25°C (x10'3Pa/s)) Halide-free (<0.05%). Passes SIR (Surface Insulation Resistance) test. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop). 96°C-250°C temperature range.
- Offers spectacular low-voiding and truly no-clean performance in many professional soldering areas including SMD solder paste. Best performs with mid-temp range tin/lead alloys melting at 150ºC-200ºC.
- Contains QCAid™ - residual optical tracer glowing in UV blacklight allowing for immediate visual detection of contaminated PCB areas. QCAid - Everyone Can QC™
SMD-Paste values:
- Stencil life @ 30-70% RH - up to 16 hours - one of the longest values on the market allowing for a long process window and next day completion.
- Viscosity (jars, cartridges): 100-150 Pa/s (print-grade) and 80-100 Pa/s (Dispenser-grade), Tack value: 42-44g
- Stable wetting performance and low voiding soldering on most PCB finishes. Halogen-free clear residue. Sharp definition at high printing speeds up to 200mm/sec, enclosed print-head compatible.
Origin
Made in the USA using certified REACH-compliant raw materials, STIRRI® specialty SMD-series have been helping the soldering community worldwide to reliably connect, clean and protect its craft. To see the difference, order your kit today!
Product Description
Product Description
Eignung
Eignung
Bezeichnung
Bezeichnung
ROL0-Klassifizierung – no-clean und nicht korrosiv. Halogenfrei (<0,05 %). Oberflächenisolationsbeständig. Kein Kupferspiegeldurchbruch. Geringe elektrochemische Migration (Abfall unter 1 Dekade)
TDS – Technisches Datenblatt
TDS – Technisches Datenblatt
30-50 mPa/s (Malcom @ 10 RPM/25ºC (x 10³mPa/s))
Haftungsausschluss
Haftungsausschluss
Die hierin enthaltenen Informationen basieren auf technischen Daten, die wir für zuverlässig halten, und sind für die Nutzung durch Personen mit entsprechenden Fähigkeiten auf eigenes Risiko bestimmt. Verbraucher sollten ihre eigenen Tests durchführen, um die Eignung jedes Produkts für ihren jeweiligen Prozess festzustellen, und Sicherheitsmaßnahmen ergreifen. Hersteller/Wiederverkäufer übernehmen keine Haftung für erzielte Ergebnisse oder Schäden, die durch die Anwendung der dargestellten Daten entstehen.
Reinigung „No-Clean“
Reinigung „No-Clean“
Abgabeset
Abgabeset
Dieses Produkt enthält kein Dosierset – ein separater Kauf!
Das Dispensing Kit ist ein Zusatzgerät für die manuelle Dosierung, mit dem mit einem Kolben ähnlich wie bei einer medizinischen Spritze ein Druck erzeugt wird.
Luftspritzen für pneumatische Dosiermaschinen verwenden einen Kolbenstopper anstelle eines Kolbens. Entfernen Sie den Kolben nicht, da er die beste Abdichtung bietet und den Kontakt mit Luft verhindert!
Einhaltung
Einhaltung
Dieses Material ist als REACH-konform zertifiziert – es werden keine Rohstoffe aus der REACH-Einschränkungsliste besonders besorgniserregender Stoffe verwendet.
